As the "golden partner" of the vehicle power system, motorcycle batteries and rectifiers ascertain the stability and service life of the entire vehicle's power supply. Max Trading's batteries and rectifiers have served over 50 countries and 1000 customers over the world. We not only provide high-quality dual core components, but also strive to become a "power partner" for overseas customers, using a combination of "compliance+reliability+high cost-effectiveness" solutions to help customers expand into international markets.
Motorcycle batteries and rectifiers are the "core partners" of the power system, forming a complete chain of "power generation conversion storage power supply" together with the magnetic motor coil: the magnetic motor coil is responsible for generating electrical energy, the rectifier is responsible for energy conversion and stabilization, the battery is responsible for energy storage and emergency power supply, and the three work together to ensure the stable operation of the vehicle's electrical system.

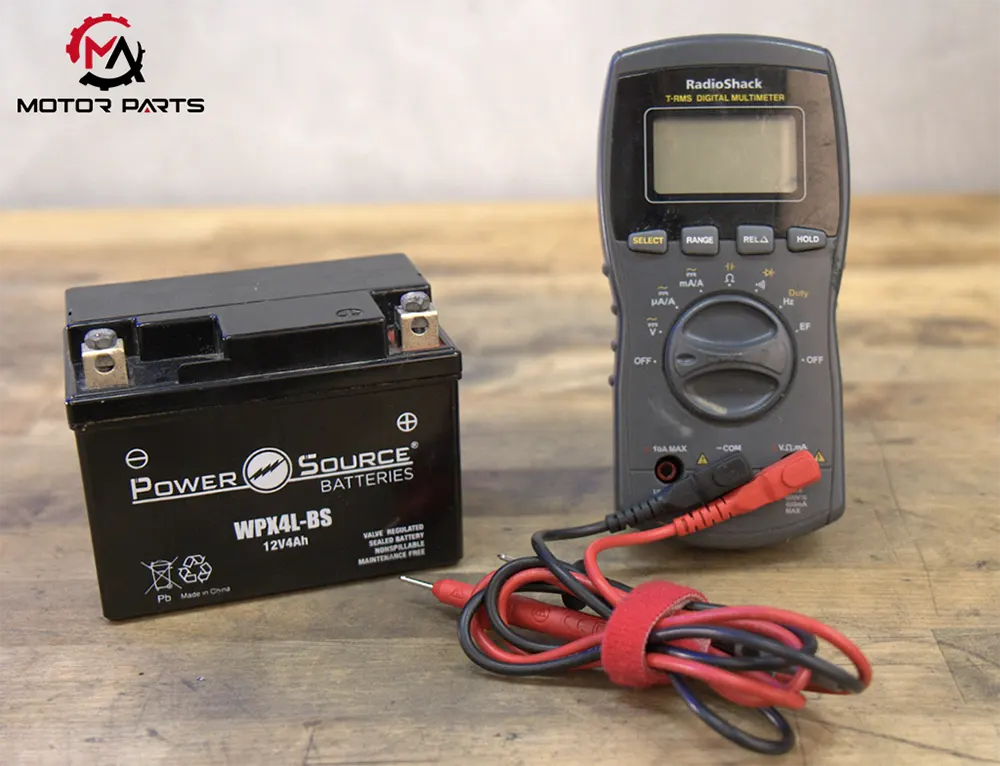

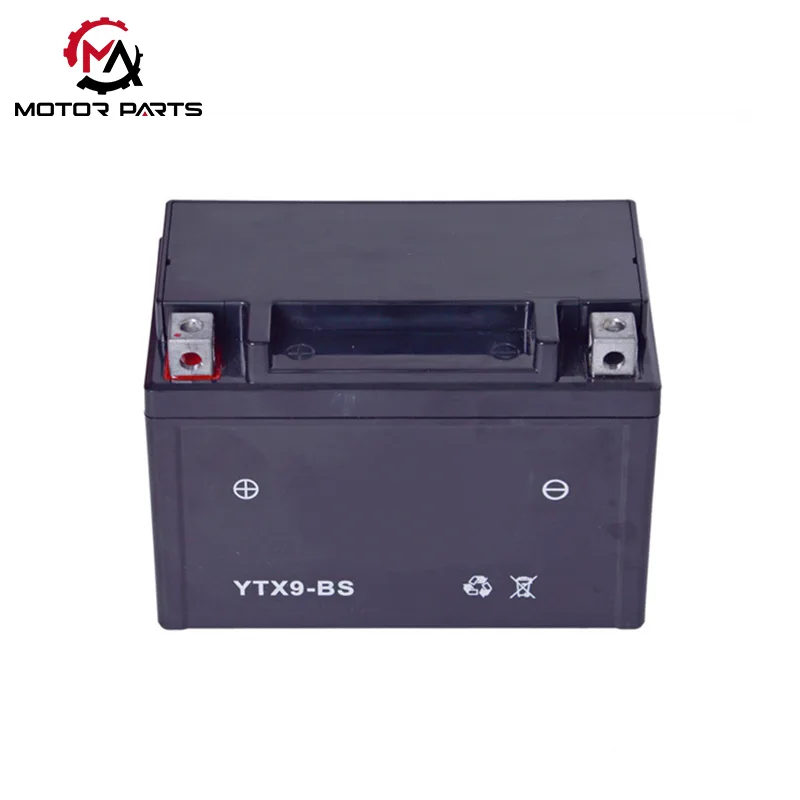

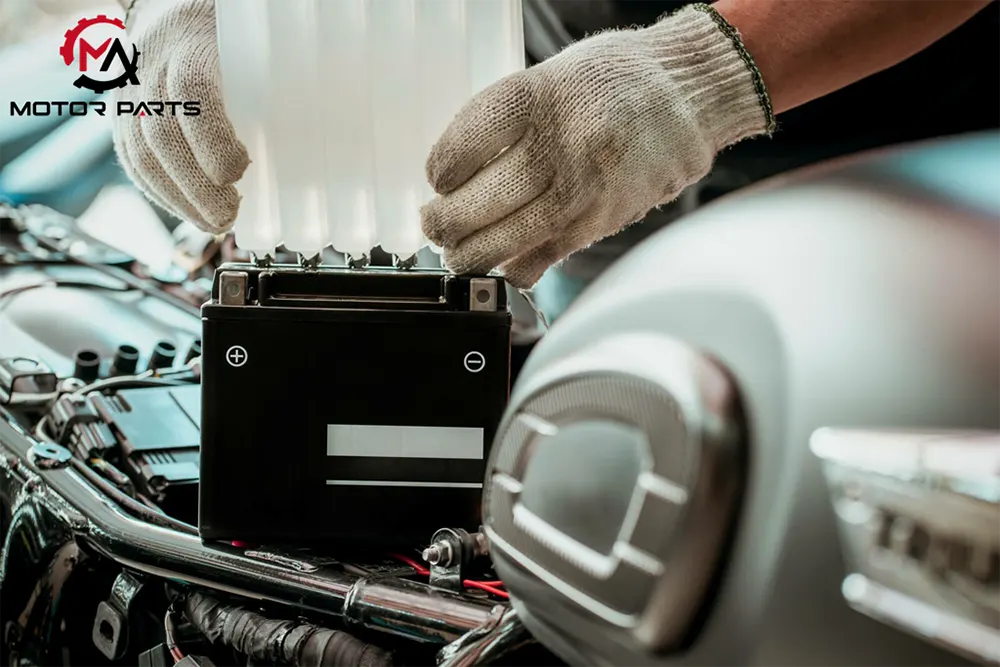

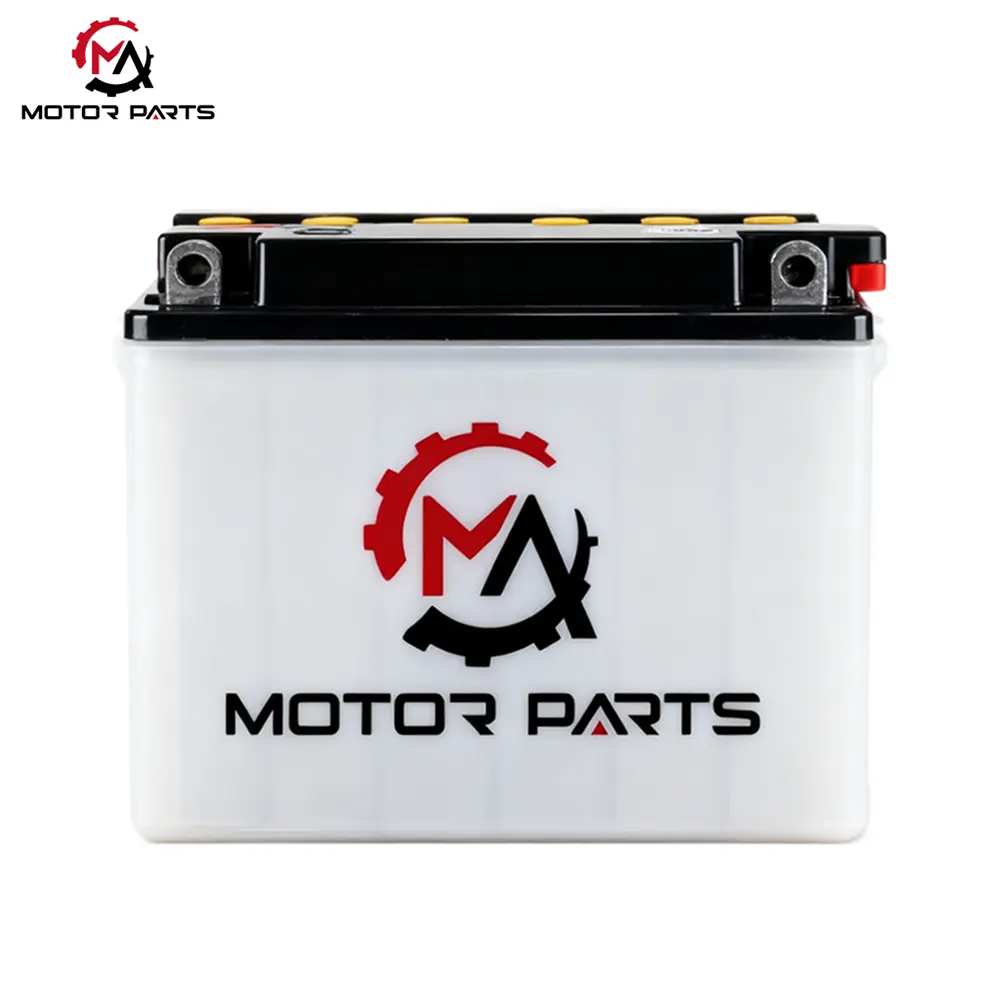

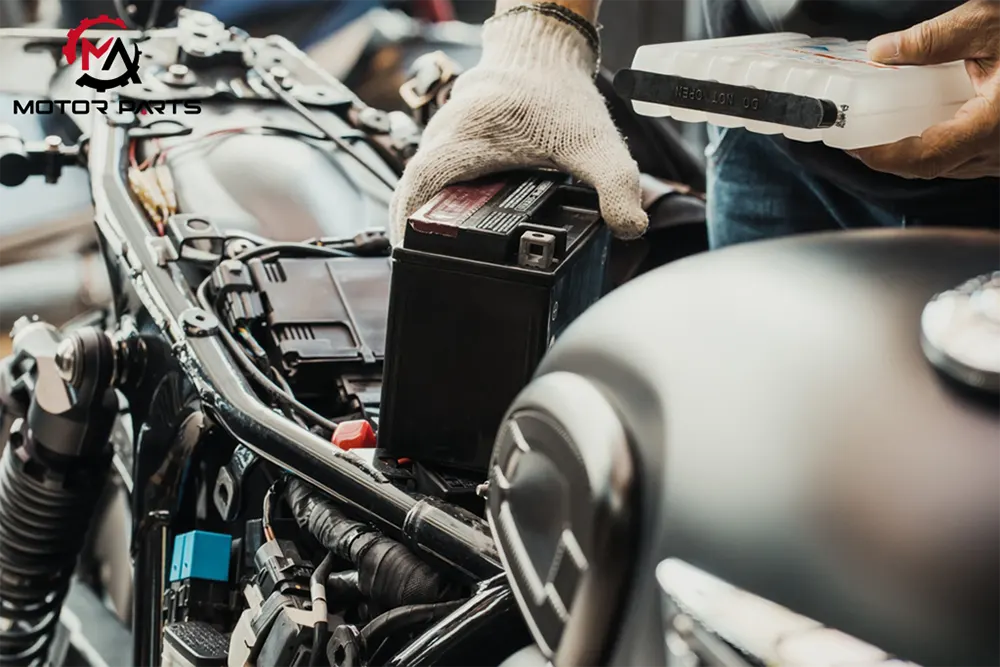

The battery is the only DC energy storage component of a motorcycle, mainly used for "storing electrical energy" and "stable power supply". It plays a key role in engine start-up, low-speed operation, and sudden failures, and can be divided into four core functions:
(1) Provide instantaneous high current for the starting system to ensure engine start-up
This is one of the most critical functions of batteries. When starting a motorcycle, the starter motor requires a high current of several tens of amperes to drive (power 100W-300W), but when the engine is not running, the magnetic motor cannot generate electricity and can only rely on the battery for power supply. After pressing the electric start button, the battery outputs electrical energy to the starter motor through the start relay, driving the engine crankshaft to rotate until ignition is successful. If the battery runs out of power, it can cause weak or even impossible starting, especially in low-temperature environments.
(2) Stabilize electrical system voltage and buffer power fluctuations
When the engine is running, the power generation of the magnetic motor fluctuates greatly with the speed, while the battery stabilizes the voltage through intelligent charging and discharging. When idling or experiencing a surge in electricity consumption, it promptly replenishes the power to ensure the normal operation of the equipment, just like in congested urban road conditions, providing protection for vehicle electricity usage.
During engine operation, the power generation of the magnetic motor coil is positively correlated with the speed, with low idle power generation and significant improvement at high speeds. If only the magnetic motor is used for direct power supply, the voltage fluctuation of electrical equipment will be large, the idle lights will be dim, and the high-speed lights will be too bright.
The battery acts as a 'voltage regulator', maintaining voltage stability through dynamic charging and discharging: charging and stabilizing voltage when the magnetic motor generates excess power; When idling, low-speed, or sudden increase in electrical load, release electrical energy to fill the gap and ensure stable power supply for instruments, ignition systems, etc.
Taking urban congested road conditions as an example, vehicles idle for long periods of time, and the magnetic motor power is only sufficient for basic electricity consumption. After turning on the headlights and turn signals, the battery quickly intervenes to prevent the lights from dimming and to prevent unstable idle caused by insufficient ignition system voltage.
(3) Store electrical energy to ensure basic power supply after engine shutdown
After the engine is turned off, the magnetic motor coil stops generating electricity, and the motorcycle's anti-theft device, instrument clock, mileage memory and other equipment still require power, which is called "standby power" and completely relies on the battery. Taking the electronic anti-theft device as an example, it continuously monitors after turning off the engine, with a daily power consumption of about 0.1Ah-0.3Ah (ordinary battery capacity of 5Ah-12Ah). Long term parking is prone to power loss and requires charging to restart. And functions such as instrument clock and mileage memory also rely on batteries to maintain power supply and prevent data loss.
(4) Protect electrical equipment and avert momentary voltage surges
When there is a sudden malfunction in the motorcycle electrical system (like a short circuit in the circuit or sudden disconnection of the load), it may bring instantaneous high voltage or current fluctuations. The capacitance characteristics of the battery can uptake these influences and protect the igniter ECU、 Precision electrical components like sensors. For example, if the magnetic motor coil suddenly short circuits, it may generate instantaneous high voltage. The battery can buffer this impact by discharging itself to avoid high voltage damage to the rectifier or ECU; If electrical equipment (such as headlights) suddenly disconnects, the remaining electrical energy in the circuit can be absorbed by the battery to prevent voltage surges from penetrating other components.

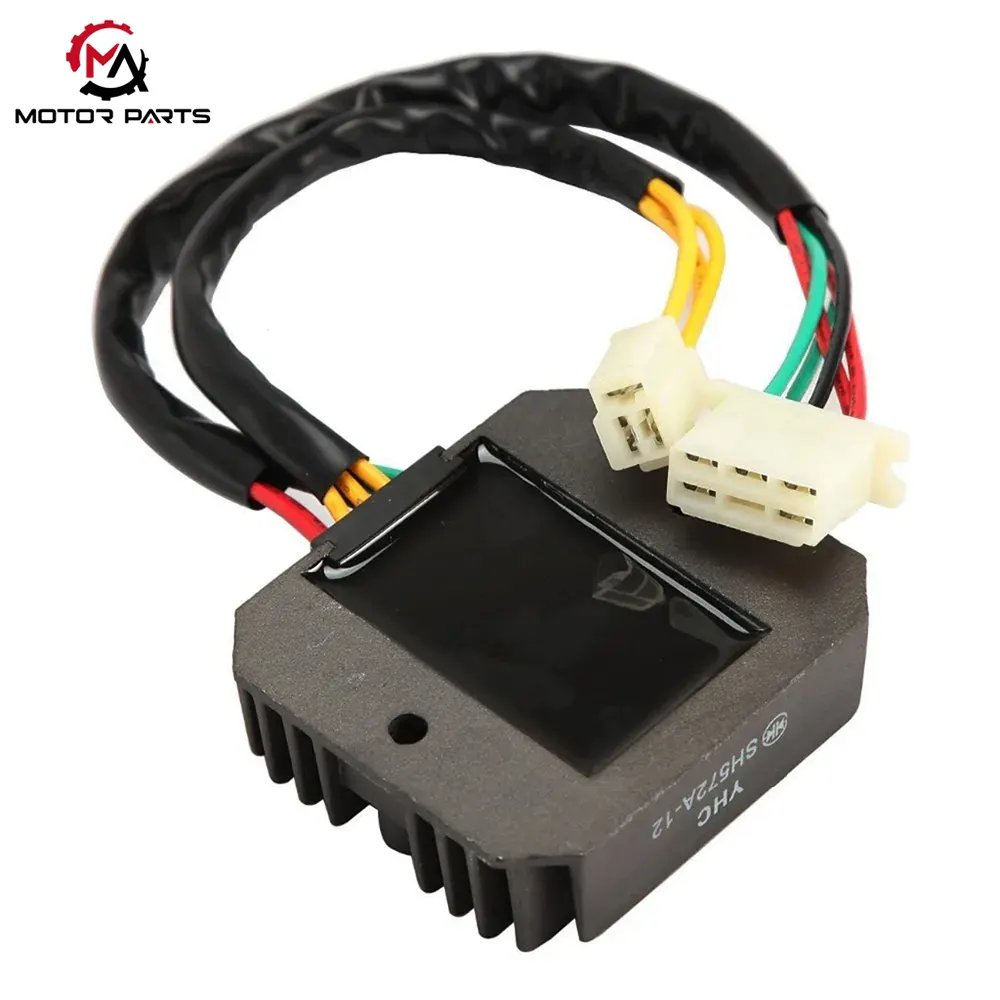

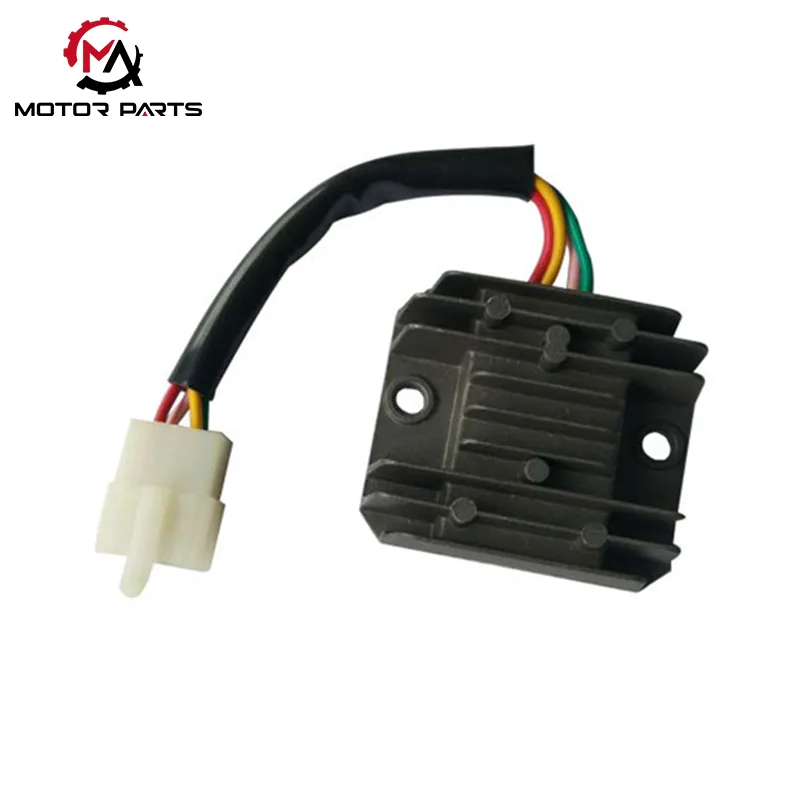

The full name of rectifier is "rectifier regulator", which is a key component connecting the magnetic motor coil with the battery and electrical equipment. Its main function is to "convert AC power into DC power" and "stabilize the output voltage", guaranteeing that the electrical energy meets the requirements of the electrical system. It can be divided into three core functions:
(1) Rectify the alternating current of the magnetic motor into direct current to meet the demand for direct current electricity

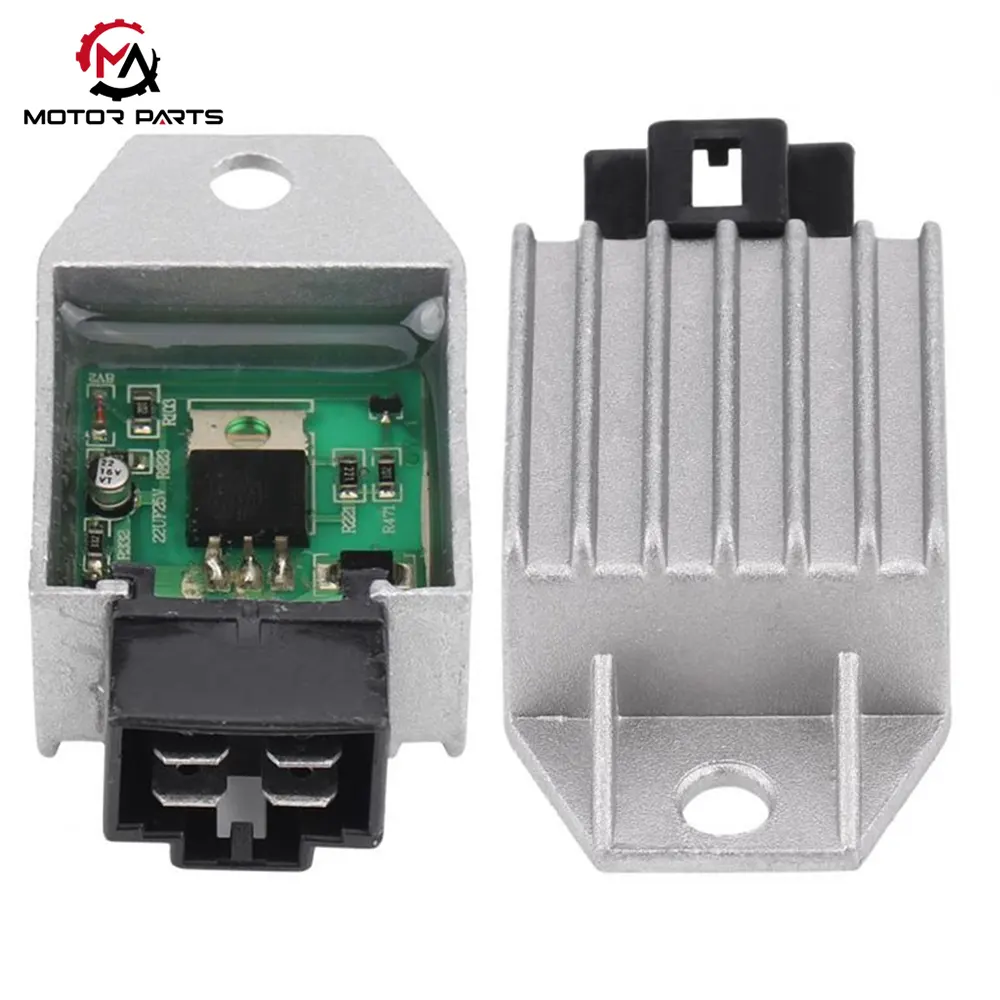

The motorcycle magnetic motor coil outputs AC power of 10V-20V, while core equipment such as batteries and ignition systems require DC power. The rectifier hangs on an internal diode rectifier bridge to convert AC power into pulsating DC power, which is then processed by a filtering capacitor into stable DC power to supply power to the equipment and charge the battery.
In actual operation, when the magnetic motor coil outputs 18V AC power at high speed, the rectifier can stabilize it at 14V, meeting the charging requirements of 12V battery 13.5V-14.5V and adapting to DC equipment power consumption. If the rectifier fails and the DC power output is interrupted, it will cause the battery to be unable to charge, the ignition system and other equipment to fail, resulting in abnormal engine starting or stalling during operation.
(2) Stable output voltage to prevent component damage from overcharging or overvoltage
This is the most essential protection function of the rectifier. The power generation of the magnetic motor coil increases with the increase of speed. If the voltage is not limited, a high voltage of more than 20V may be generated at high speeds, which can cause overcharging of the battery (electrolyte boiling, plate damage) and burning of electrical equipment (such as light bulbs and instruments) due to overvoltage. The rectifier stabilizes the output voltage within a safe range of 13.5V-14.5V through internal voltage regulation circuits (such as thyristors and MOSFETs). When the power generation of the magnetic motor exceeds the demand, the voltage regulation circuit will "divert" the excess electrical energy (through resistance heating consumption or cutting off power supply to some coils) to ensure that the output voltage does not exceed the upper limit; When the power generation is insufficient, the voltage regulator circuit will prioritize ensuring the power supply of key equipment (such as the ignition system), while allowing the battery to assist in discharging. For example, when driving at high speeds on highways, the coil speed of the magnetic motor is extremely high, and the rectifier will stabilize the voltage at around 14V to avoid overcharging of the battery and headlight burnout due to high voltage.
(3) Allocate electrical energy, balance charging and electricity demand
As a key component of motorcycle power management, rectifier has dual functions of conversion and distribution. When the demand for electricity is low, focus on charging the battery, and prioritize ensuring equipment power supply during peak electricity consumption. The following abbreviations are completed by simplifying language, extracting key data, and retaining main information: The rectifier is both a "converter" and a "distributor" of electrical energy. It will adjust the magnetic motor's electrical energy reasonably based on the motorcycle's power consumption status. When the electricity demand is low, if only the instrument is turned on, the rectifier will use most of the electricity for charging; When there is a high demand for electricity, such as simultaneously activating headlights, horns, and turn signals, it will prioritize meeting the power needs of the equipment, and the remaining electricity will be used for charging to avoid insufficient power supply to the equipment. For example, during nighttime cycling, the rectifier will prioritize ensuring stable power supply for the 35W-55W headlights, while also replenishing a small amount of energy to the battery to prevent power loss.
